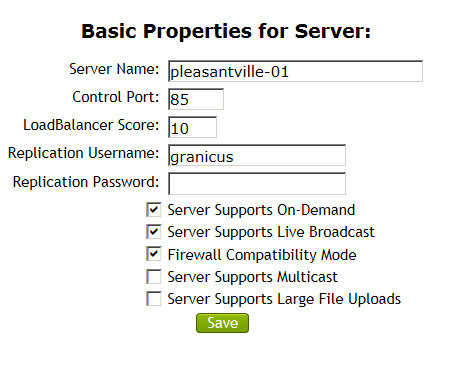

| Field | Description |
| Server Name | Identifies which server is communicating with the Performance Accelerator. Each Performance Accelerator contains a configuration file; this file must contain the server name that is in MediaManager in order to communicate with the Granicus application and the database |
| Control Port | The port that allows different kinds of network connections to run to and from Granicus |
| Load Balancer Score | Do not change the default setting |
| Replication Username | For clients utilizing 2.0 to enable a web connection to Granicus servers |
| Replication Password | For clients utilizing 2.0 to enable a web connection to Granicus servers |
| Server Supports On-Demand | Do not change the default setting |
| Server Supports Live Broadcast | Do not change the default setting |
| Firewall Compatibility Mode | This setting tells the application that the server is behind a firewall, which enables the credentials (username and password) to be triggered. If firewall compatibility is set to “No,” the MediaVault assumes that other servers are able to download content from the server. If firewall compatibility is set to “Yes,” then the MediaVault initiates FTP transfers and sends its files to other servers that should distribute the same content |
| Server Supports Multicast | This setting tells the DataCenter that multicasting is enabled on the server itself. When multicasting is enabled, an NSC file is created that allows multicast streaming. This box tells MediaManager to alert the player to look for the NSC file created on the server |
| Server Supports Large File Uploads | Do not change the default setting |
